About The

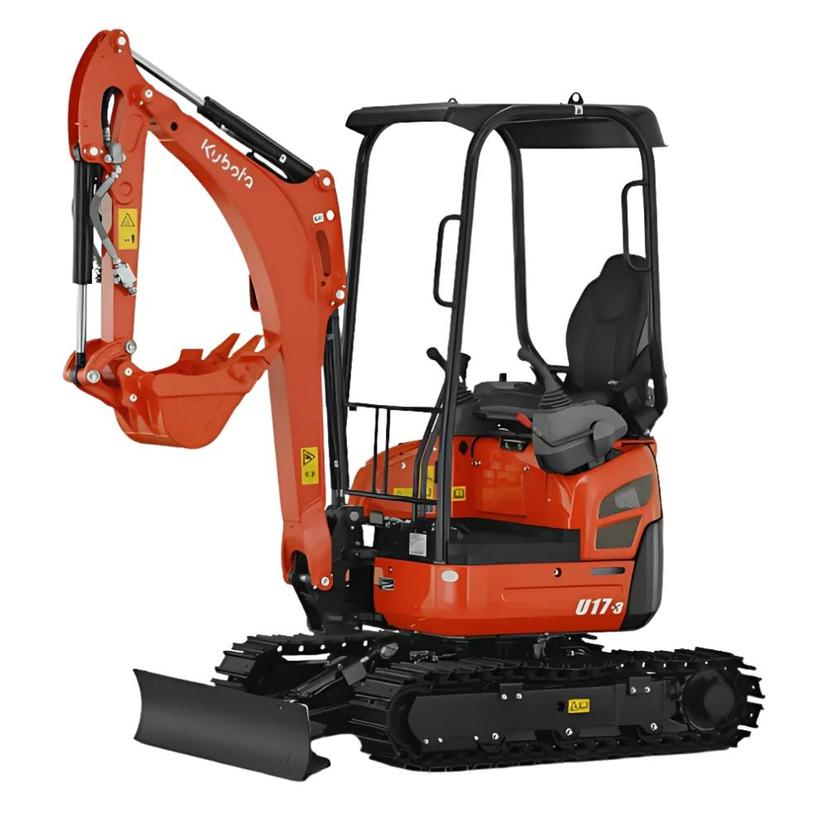

Kubota 1.7 Tonne Mini Excavator
This machine is suited for:
Landscaping work, garden/yard excavations where access is tight (gates, doorways).
Small foundation excavations, drainage, service trenches.
Urban or residential sites where manoeuvring space is limited.
Jobs requiring a compact size but good dig depth for its class.
Operators needing an excavator that can retract tracks to access narrow openings.

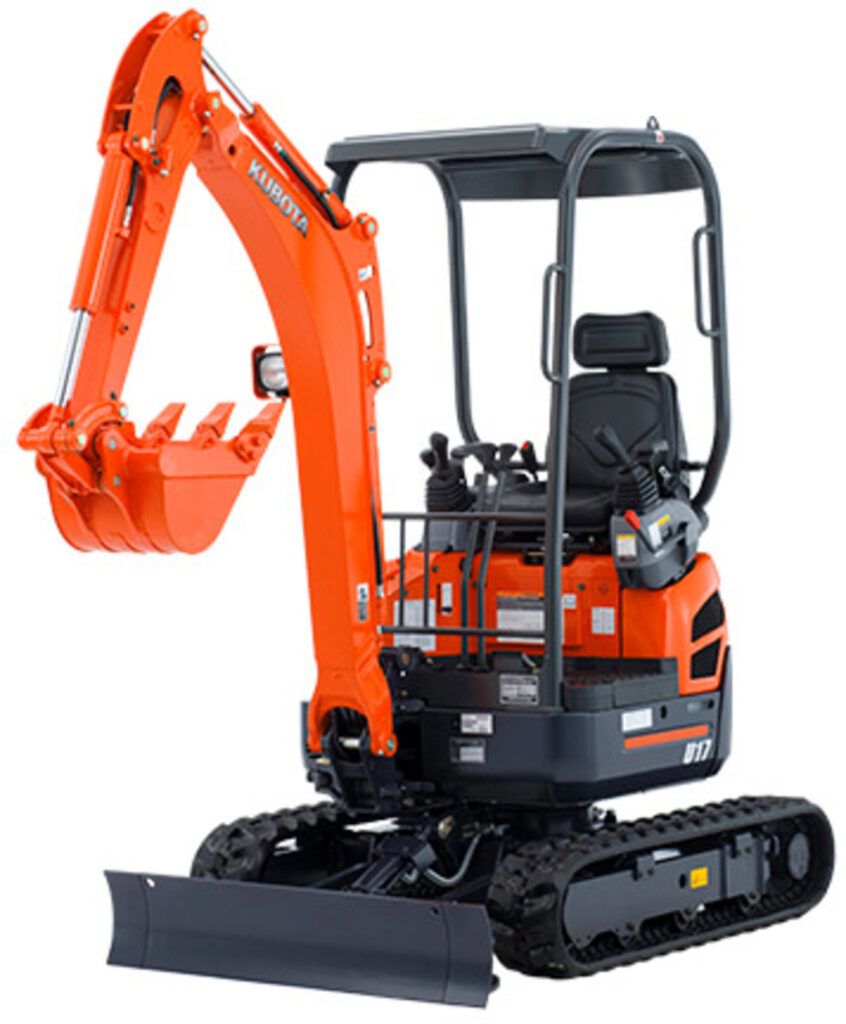

Kubota 1.7 Tonne Mini Excavator
key specification
Operating weight: approx. 1,650 kg – 1,700 kg
Engine output: 11.3 kW (15.3 hp) @ 2,300 rpm
Engine displacement: 898 cc (0.9 L) – Kubota D902-E3 diesel engine
Maximum digging depth: 2,310 mm (standard arm) / 2,460 mm (long arm)
Maximum reach at ground level: 3,840 mm – 3,900 mm
Overall width: 990 mm (retracted) / 1,240 mm (extended)
Overall length: 3,545 mm
Overall height: 2,340 mm
Bucket breakout force: 15.2 kN
Arm breakout force: 8.5 kN
Travel speed: Low – 2.2 km/h | High – 4.1 km/h
Hydraulic auxiliary flow: 27.7 L/min at 18.6 MPa
Fuel capacity: 19 litres
Track type: Rubber tracks with variable width
Zero-tail swing: Yes (U17-3α model)
ROPS/FOPS canopy: Standard for operator protection
Bucket options: 300 mm dig bucket / 450 mm dig bucket / 1000 mm mud bucket
Two speed travel switch: Included
Two pattern selection system (TPSS): Included
Bobcat E20 Compact Excavator
Specifications
| Specification | Value |
|---|---|
| Operating Weight | 1,953 kg |
| Engine Power | 11.2 kW / 15 hp |
| Bucket Digging Force | 20.8 kN / 4,684 lbf |
| Arm Digging Force | 9.3 kN / 2,086 lbf |
| Maximum Dig Depth | 2.57 m |
| Maximum Reach at Ground Level | 4.26 m |
| Maximum Dump Height | 2.83 m |
| Width (Retracted / Extended) | 980 mm / 1,360 mm |
| Overall Length | 3.69 m |
| Height (Cab / Canopy) | 2,345 mm |
| Tail Swing Type | Zero Tail Swing |
| Travel Speed (Low / High) | 2.1 / 4.2 km/h |
| Ground Pressure | 28.6 kPa |
| Hydraulic Flow | 30 L/min |
| Fuel Tank Capacity | 19 L |
| Swing Speed | 9.8 rpm |
| Track Width | 230 mm |
| Maximum Gradeability | 30° (58%) |
